Mobley Engineering

Design and installation of aeration systems for hydropower, water supply reservoirs and other applications

Vadnais Lake, Minnesota



Vadnais Lake

  • Vadnais Lake is located in Ramsey County, Minnesota
  • Consisting of an East Side and a West Side, with Sucker Lake Road dividing the lake



Vadnais Lake Hypolimnetic Oxygenation System

Saint Paul Regional Water Service

First Year Operation Results
Mobley Engineering, Inc. Data Review
Mark Mobley 02/15/2013


Reservoir Conditions:

Operation of the hypolimnetic oxygen system (HOS) in Vadnais Lake during 2012 has resulted in dramatically increased dissolved oxygen (DO) levels in the reservoir and over the sediments.  August DO levels in 2010 and 2011 were less than 2 mg/L in the hyolimnion, and 0 to 1 mg/L at the sediments.  With operation of the HOS in 2012, the hypolimnion was maintained with DO levels over 7 mg/L and 1 to 3 mg/L at the sediments.

Aoxic Metals:

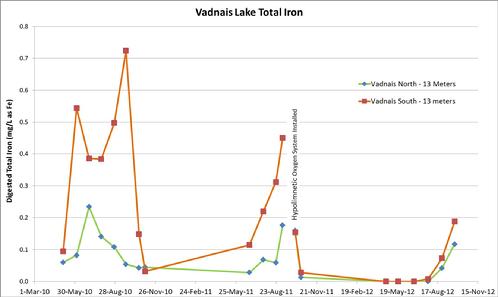

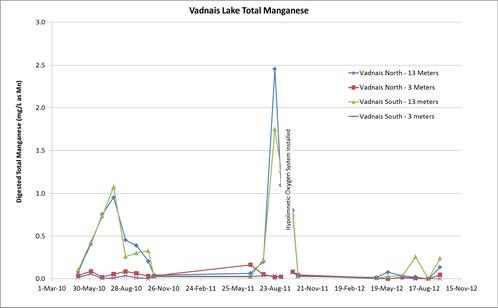

Iron (Fe) and manganese (Mn) concentrations were reduced or eliminated with operation of the oxygenation system.  Summertime Fe concentrations spiked over 0.7 mg/L in 2010 and 0.4 mg/L in 2011.  During 2012 the Fe concentrations were maintained at less than 0.1 mg/L until reservoir turnover.  Manganese was reduced from spikes of 1.0 to 2.5 mg/L to less than 0.3 mg/L in 2012.

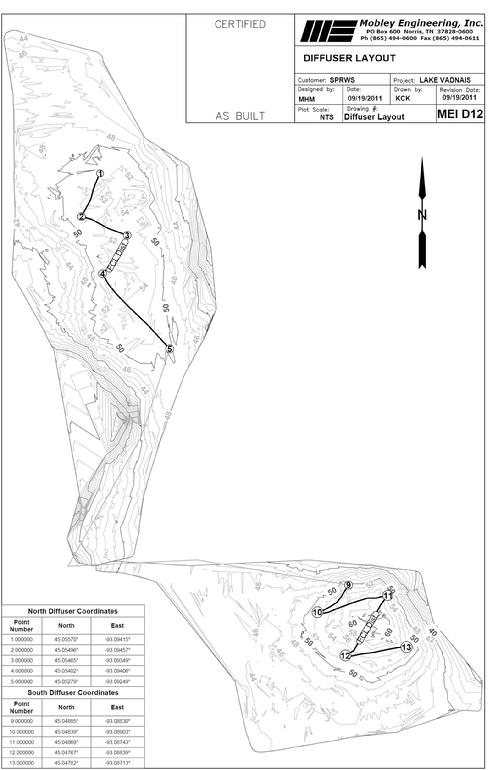

Layout


Results







Site Pictures


Aligning the diffuser to the area where the manifold will be installed


Hanging weights, Lake Vadnais, MN
Early morning, Lake Vadnais, MN
The LOX site

Mounds of algae were cleaned off of the lines prior to sinking
