Lake Lillinoah, Shepaug Dam, Connecticut

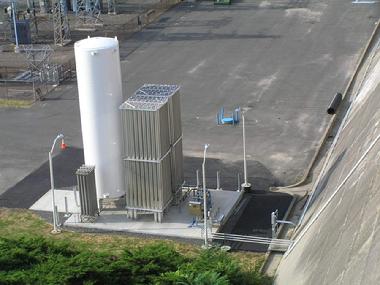

View of the LOx facility from the top of the dam


Lake Lillinonah and the Shepaug Hydroelectric Project


Lake Lillinonah:

  • Located in New Milford, Conneticut
  • Formed in 1955 by the Shepaug Hydroelectric Project on the Housatonic River
  • Operated as a multiple use impoundment by Northeast Generation Services
  • Drainage area of 1,400 square miles
  • 74,000 acre-feet
  • At full pond elevation of 200 feet, the reservoir has a surface area of 1,870 acres and is approximately 12 miles long
  • Reservoir fluctuates about 4.5 feet

Hydrofacilities at the project include:

  • A 1,400 foot long concrete gravity structure dam with a crest elevation of 206 feet
  • A single unit powerhouse


Lake Lillinonah Oxygen Diffuser System

Objective


To meet FERC specifications for re-licnesing purposes, that were part of the terms of the Connecticut Department of Environmental Protection Clean Water Act.  This included increasing dissolved oxygen levels in the project releases into the Housatonic River
to 5 mg/L.

Facilities
  • 3 diffusers in the old riverbed in the forebay extending almost 4,000 feet upstream of the dam
  • 13,000 gallon oxygen storage system
  • Ambient air vaporizers
  • Pressure control and flow distribution piping



Site Pictures

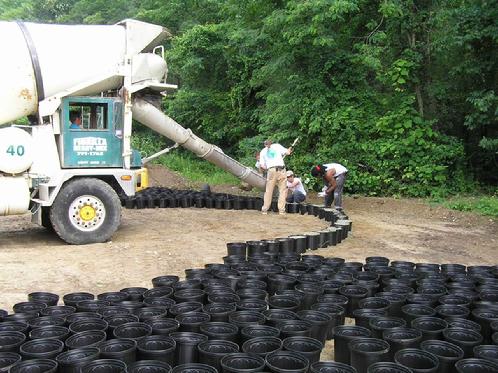

Filling the anchor weights with concrete
Line diffuser assembly
Anchor connection welded into place

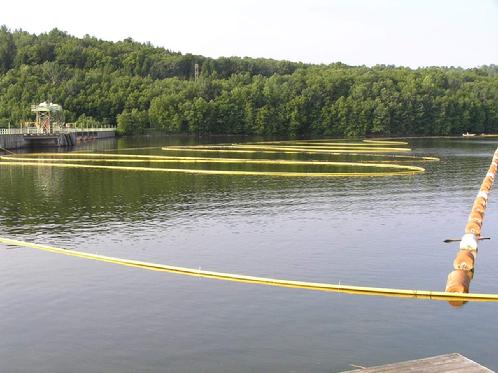

Floating completed supply and diffuser line

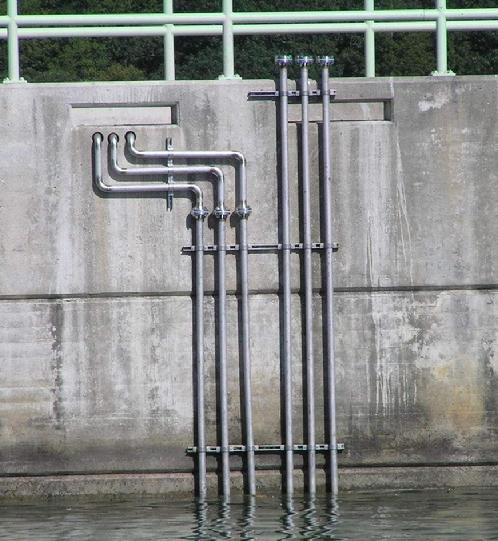

Stainless steel oxygen and buoyancy connections at the face of the dam

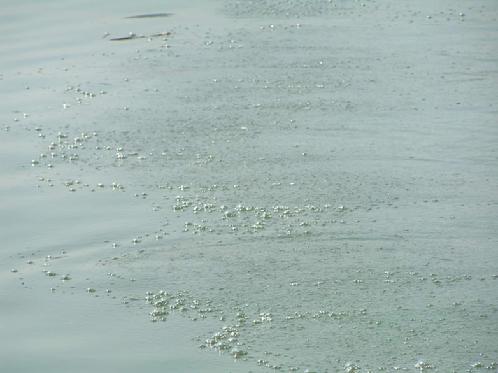

Bubbles after deployment

First line down
Second line down
Third line down



Publications and References




A Reservoir Oxygenation System to Meet Re-licensing Water Quality Goals at Shepaug Dam
Mark Mobley, Rich Szatkowski (FirstLight Power Resources)

Presented at Waterpower XV
Chattanooga Convention Center
July 23-26, 2007
Paper No. 037
HCI Publications
Chattanooga, Tennessee
